Anesthesia Machines YR02197 // YR02062 // YR02063

Description

Description

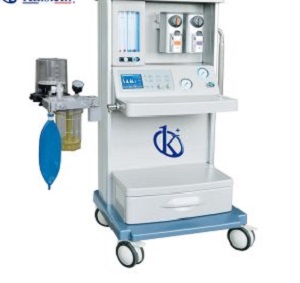

The Anesthesia Machines YR02197, YR02062, and YR02063 are advanced medical devices designed to provide comprehensive anesthesia solutions for both adults and children. Each model comes with a built-in ventilator and supports multiple breathing modes such as A/C, IPPV, SIPPV, and SIMV, ensuring adaptability in various clinical situations. These machines feature a dual vaporizer system as standard and include comprehensive monitoring capabilities for ventilation parameters, alarm indications, and breathing waveforms, enhancing patient safety and healthcare efficiency.

Features
Key features of the YR02197 series include a built-in ventilator, dual vaporizer system, adaptable tidal volume range, and comprehensive monitoring capabilities.

Technical Specifications
Model YR02197 YR02062 YR02063
Display screen LCD 5.4″ LCD 10.4″ LCD 10.1″
Flowmeters Tube 4-Tube O2, N2O 6-Tube O2, N2O, AIR 4-Tube O2, N2O
Vaporizer 1 Enflurane/ Isoflurane/ Sevoflurane (Optional: Halothane) 2 Enflurane/ Isoflurane/ Sevoflurane (Optional: Halothane) 1 Enflurane/ Isoflurane/ Sevoflurane (Optional: Halothane)
Respiration A/C, IPPV, SIPPV, IMV, SIMV, MANUAL IPPV, SIGH (Deep Breaths / Per Time After Breathing 60 Times), SIMV/F/2, PEEP (+0.5 KPa — +2 KPa), SIPPV VCV / SIMV / Manual / STAND-BY
Tidal Volume Range 50~1500ml 30~1500ml 20~1500ml
I/E Ratio 4:1~1:10 3: 1~1:4 Adjustable 8:1~1:10
