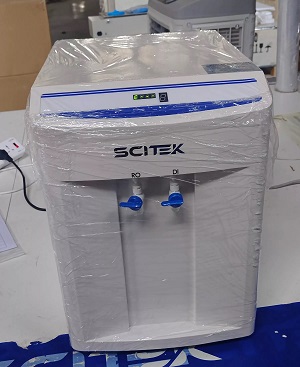

Deionized Water Purifier WP-D10U

Description

Deionization is performed when pure water needs to be dispensed immediately. Deionization is critical when the water is about to be used because the very high purity can degrade quickly.
DI water machines work by replacing positive and negative molecules in water with hydrogen molecules (positively charged) and hydroxyl molecules (negatively charged). In effect, the removal of organic matter through filtration improves water quality and prevents scale deposits. For this reason, DI water machines are one of the most popular water treatment options in the laboratory and medical industries.

Deionized Water Purifier Specifications:
Model WP-D10U
Water Supply Requirement Tap water: TDS<200ppm; Water pressure >0.1Mpa; Water temperature: 5-45℃
Pure Water Quality Conductivity 0.1us/cm (25℃)
PH value (25℃) None
Oxidizable (Calculated as O) Technical requirements: ≦0.08mg/L;
Test results: ≦0.08mg/L
Evaporation Residue (105±2℃) Technical requirements: ≦1.0mg/L;
Inspection results: 0.7mg/L
Inspection Basis GB/T6682-2008
Consumption 25W
Water Output Speed 10L/h
Control System Operation mode display: power, water shortage, flushing, full water, inlet water quality monitoring, RO water quality and temperature UP water quality and temperature, etc.
Safety Performance Automatically enters standby state when there is no water or low water pressure, and enters standby state when the system is full of water (constant pressure).
Purification System
Pretreatment unit, external softening filter (recommended in places with high raw water hardness);
1μm deep PP filter element*2+precision activated carbon filter element
RO Reverse Osmosis Unit American original RO reverse osmosis membrane/membrane group
Post Purification Unit Purification column
Standard Accessories Host + accessory package + 3.2G pressure barrel
External Size(WxDxH)(mm)
340x460x480mm (Water Purifier)
245x245x390 (Pressure tank)
Shipping Size (WxDxH)(mm)
535x435x550mm (Water Purifier)
245x245x360mm (Pressure tank)
N.W/G.W
23kg/25kg (Water Purifier)
2kg/3kg (Pressure Tank)

Deionized Water Purifier Features:
The deionized water purifier has power indicator, pump work indicator, low pressure indicator and system flushing indicator functions.
Using imported ion filtration membranes and high-pressure, silent pure water pumps, the operation quality is more reliable and it is applicable to a wider range of water quality;
It has system flushing function: every time before turning on the water machine, di water machine will automatically flush for 30 seconds and then the system will start to make water;
The di water machine has system protection function: when the water pressure is too low or there is no water, the equipment automatically shuts down, and when the water source comes in, the equipment automatically turns on;
The WP-DU series ultrapure water machine has an online water quality monitoring function, which can monitor the incoming water quality (located above the instrument, near the function detection area, indicated by a digital tube), RO water quality and temperature, and pure water quality and temperature in real time.

Suggestion:
The quality of the incoming water affects the quality of the outgoing water and the service life of the filter column;
When the source water quality is poor (TDS is greater than 200ppm), the RO pure water quality will drop to above 10μs/c㎡;
When the raw water quality TDS>500, it is recommended to use a water softener;
