Description
DESCRIPTION

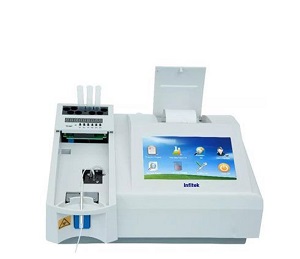

Semi-Auto Biochemistry Analyzer is suitable for the analysis of serum, plasma, urine and other body fluid samples, and can complete the test of biochemical, special protein, drug monitoring and blood coagulation items
Flow cell & cuvette testing mode
Huge storage of more than 300 programs & 200000 sample results
Blood coagulation function: The instrument can perform blood coagulation routine tests: PT，APTT, TT and can measure blood coagulation time
Different vacancies on the multifunctional incubator can be used for different sizes of test tubes, cuvettes, etc（22 incubation positions in total）.
SPECIFICATIONS
Model BA-SA-100C
Test method 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation.
Optics 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional.
Lamp house Long-life tungsten halogen lamp(6V/10W), auto-sleep function.
Display 7.0″ TFT LCD with touch screen, 800*480 pixels.
Printer Build-in thermal printer, 57mm printer paper.
Temperature 25,30, 37°C and Room temperature. By means of Peltier elements.
Flow cell capacity & optical path 32µL, 10mm
Resolution 0.0001 Abs.
Photometric range 0.0000-4.0000 Abs.
CPU ARM Cortex-A8, 720M Hz.
Memory DDR2 SDRAM: 1G bit;
Flash 256 MB; Over 300 programs, 200000 results can be stored.
Interface 4 USB Hosts, 1 USB Slave, 1 Ethernet port. USB port(host) for keyboard, mouse, printer, U disk, bar code reader etc. USB port(slave) for PC connection(support PC software control function).
Operational environment Temperature: 10°C~30°C, Humidity: 30%~80%
Power requirement Wide power supply AC 100-240V, 50/60 Hz
Dimension 400*300*160mm(L*W*H)
Language English、Portuguese、Spanish、Chinese
