Description
Description
Scopio is transforming the way you work with the world’s first full-field digital cell morphology platforms. By scanning peripheral blood smear (PBS) samples—from the monolayer to the feathered edge—in 100X resolution, you can digitally pan or zoom to seamlessly go from the full context of a slide, down to an individual cell.
Scopio’s Full-Field Peripheral Blood Smear Application reduces turnaround time by enabling sharing of digitized slides throughout your secure hospital network
With AI-powered decision support, both standardization and efficiency are increased, significantly reducing the complexity associated with traditional morphological analysis

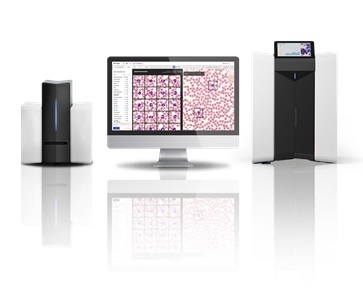

Scopio X100 and X100HT Digital Morphology Platforms
X100
X100HT
Technology
Full-field cell morphology
Full-field cell morphology
Slide Throughput
3 slides at a time (one slide tray)
Throughput per hour:
PBS up to 15 slides
BMA Up to 3 slides
30 slides at a time (3-10 slide cassettes)
Throughput per hour:
PBS up to 40 slides
BMA Up to 9 slides
Slide Preparation
Manual drop of oil and coverslip
Automated coverslip and oil application
Slide Properties
Accepts standard slides, round square corners,
ground chipped edges
Accepts standard slides, round square corners,
ground chipped edges
Compatible Stains
Romanowsky stains (May Grünwald-Giemsa,
Wright-Giemsa, Wright)
Prussian Blue staining (no AI DSS for BMA)
Romanowsky stains (May Grünwald-Giemsa,
Wright-Giemsa, Wright)
Prussian Blue staining (no AI DSS for BMA)
Quality Control
Daily automated check
Daily automated check
Barcode Compatibility
Code 128, Code 39, EAN-8, EAN-13, QR Code
Code 128, Code 39, EAN-8, EAN-13, QR Code
Adaptive Monolayer
Detection
Supports long and short smears
Supports long and short smears
Feathered Edge
Impression
Included in the scan
Included in the scan
White Blood Cells
Analyzed
Default 200
Default 200
BMA Nucleated Cells Differential
Differential count of 500 nucleated cells
Differential count of 500 nucleated cells
White Blood Cell
Classes
14
Red Blood Cell
Analysis Area
1,000 fields of view
1,000 fields of view
Scanned Monolayer
Area
1,000 fields of view
1,000 fields of view
Platelet Pre-
estimation
10 high-powered fields of view
10 high-powered fields of view
Device Storage
Up to 1,500 scans
Up to 15,000 reports
Up to 4,500 scans
Up to 45,000 reports
Power requirements
Dedicated line, voltage selectable for single phase,
100 VAC (6 amps)-240 VAC (3 amps)
Dedicated line, voltage selectable for single phase,
100 VAC (6 amps)-240 VAC (3 amps)
Frequency
50-60 Hz
50-60 Hz
System Weight
Scanner: 13 kg/ 29.7 lb
Processing unit: 8.3 kg/ 18.3 lb
Scanner: 29.8 kg/ 65.7 lb
Processing unit: 17 kg/ 37.5 lb
System Dimensions
Scanner: 36.2 (w) x 32 (d) x 37.5 (h) cm;
14.2 (w) x 12.6 (d) x 14.7 (h) in.
Processing unit: 31.9 (w) x 17.2 (d) x 35.8 (h) cm;
12.6 (w) x 6.8 (d) x 14.1 (h) in.
Scanner: 42 (w) x 39 (d) x 64 (h) cm;
16.6 (w) x 15.4 (d) x 25.2 (h) in.
Processing unit: 46.3(w) x 22 (d) x 48.6 (h) cm;
18.2 (w) x 8.6 (d) x 19.1 (h) in.
