Thermal Cyclers YR0

Description

Description

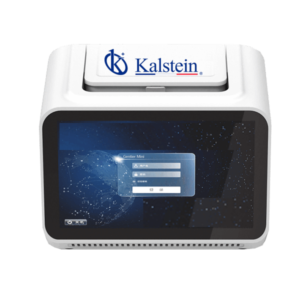

The YR01867 Thermocycler is an advanced, portable device specially designed to meet the needs of mobile and small laboratories, as well as field testing. With high-quality performance and the ability to operate in limited spaces, it is an ideal solution for applications in scientific research, animal and infectious disease control, food safety, and more. Equipped with an efficient control system and advanced technology, the YR01867 optimizes PCR experiments, providing more precise, faster, and easier-to-analyze results. With the ability to scan fluorescence across 16 wells in just 1 second, the YR01867 stands out for its speed and efficiency in sample processing.

Technical Specifications
Model YR01867
Throughput ene-16
Fluorescence Channels 4
Scanning Time 1s for all wells fluorescence scanning
Dye Compatibility Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green
Channel 2: HEX, VIC, TET, JOE
Channel 3: Texas Red, ROX
Channel 4: Cy5
Heating Rate Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s.
Cooling Rate Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s.
Temperature Accuracy ≤0.1℃
Lightsource High-brightness, long-life, maintenance-free LED light source
Special Temperature Protocol Conventional PCR, touchdown PCR, long PCR, etc.
Hot Lid Temperature 40℃-110℃
Control Modes Mode 1: 7-inch touch-screen of YR01867
Mode 2: computer software
Mode 3: remote control via Windows tablet
Key Applications Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc.
Result Analysis 1: Direct analysis on YR01867 and results can be printed directly when connected to a thermal printer;
2: Analysis through PC software.
Experiment Files Files can be downloaded by webpage login
Network Connection Internet interface, USB, WiFi
Power Failure Protection Automatically start running experiments after power supply
Specifications and Weight 205mm(L)*156mm(W)*153mm(H)); 3.2kg
Suitable Consumables 0.2mL transparent single tubes and 8-strip tubes
