Description

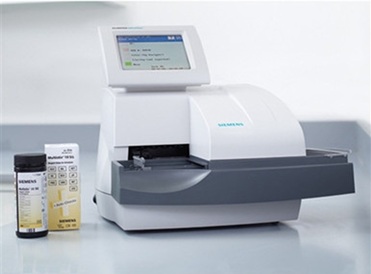

Respond to demands for higher productivity and high quality with the CLINITEK Advantus® Analyzer. Streamline your workflow with flexible operation. Immediate start-up. Automatic calibration. Network ready. A wide range of options. Added QC features. Flexible operation to meet your needs.
Features and Benefits
Easy-to-use color touchscreen
Ability to consolidate microscopy results onto one patient record
Increased control with automatic QC prompting and QC lockout capability to ensure compliance
A total of three sieve functions – confirmatory and microscopic to flag abnormal results for quick review
Convenient data retrieval for up to 500 patients by patient ID, and 200 control results
Improved data integrity by automatically identifying and reporting results only from validated Siemens strip types
Improved workflow eliminates the need for manually selecting urinalysis strip type
Helps ensure quality results since every test strip is checked for humidity exposure to prevent reporting of false results
Included 10SG Multistix Reagent Kits – Tests for Glucose, Bilirubin, Ketone, Specific Gravity, Blood, pH, Protein, Urobilinogen, Nitrite and Leukocytes.
Materials Included
Urine Chemistry Analyzer Unit
(10) Multistix 10SG Reagent Kits (Each kit comes in a bottle of 100)
(1) Barcode Reader
(1) Printer
(1) Paper Roll
(1) Chek-Stix® UA Diptube Liquid QC
(1) Power Supply
User Manual
Technical Specifications
Dimensions:
Height: 12.75
Width: 15.75
Depth: 13.75
Power Requirements: 100 V to 240 V; 50/60 Hz
Line Leakage Current:
< 0.5 mA in normal condition
< 3.5 mA in single fault condition
Maximum Power Input: 72 VA
Ambient Operating Temperature Range: 18º C to 30º C (64ºF to 86º F)
Ambient Operating Humidity Range: 20% to 80% relative humidity
Tests Measured: Leukocyte, Nitrite, Protein, Blood, Glucose, Ketone, Bilirubin, Urobilinogen, pH, Specific Gravity
Automatic Measurement: Urine color
Test Format: Dry chemistry reagint strips
Test Measurements:
Color change measured by reflectance photometry
Dual readings at reactive and reference wavelengths
Automatically adjusts for urine color
Sample Clarity: Results entered via keyboard or barcode reader
Automatic Checks:
Identification and reporting for validated Siemens strip types
Humidity exposure tested on every strip with leukocyte pad
Calibration: Automatic with every strip
On Board Computer
Memory: 500 patient records plus
Interfaces: ASTM (CCS) format and emulates CLINITEK 200 and CLINITEK 200+
Display: Color LCD touchscreen, 5.7 in (14.5 cm), 320 x 240 (QVGA)
Computer/Peripheral Interfaces
Ethernet Connection: 10/100 Mbit, bidirectional
Onboard Printer: 24-character thermal printer
Barcode: Meets ASTM E1466-92 standards, available with PC wedge/PS2 connection (Sold Seperately)
External Printer: Printer Interface: Paralell Port Connector (25 pin)
Keyboard: External PC Keyboard option/PS2 Connection
